(20 points) The cascode current source shown below utilizes two identical PMOS transistors with VDD = 1.8 V, Vtp = −0.5 V, VA′ = −6 V/μm, and μpCox = 100 μA/V2. Design the circuit to obtain I = 50 μA and Ro = 1 MΩ and to allow for the maximum possible voltage swing at the output terminal of the current source. Utilize |Vov| = 0.2 V. (a) Specify the required values of the dc bias voltages VG1 and VG2. [ 5 points] (b) What is the maximum allowable voltage at the output? [5 points] (c) Specify the values of W/L and L for Q1 and Q2. [10 points ]

(20 points) The cascode current source shown below utilizes two identical PMOS transistors with VDD = 1.8 V, Vtp = −0.5 V, VA′ = −6 V/μm, and μpCox = 100 μA/V2. Design the circuit to obtain I = 50 μA and Ro = 1 MΩ and to allow for the maximum possible voltage swing at the output terminal of the current source. Utilize |Vov| = 0.2 V. (a) Specify the required values of the dc bias voltages VG1 and VG2. [ 5 points] (b) What is the maximum allowable voltage at the output? [5 points] (c) Specify the values of W/L and L for Q1 and Q2. [10 points ]

Image text
  1. (20 points) The cascode current source shown below utilizes two identical PMOS transistors with V D D = 1.8 V , V t p = − 0.5 V , V A ′ = − 6 V / μ m , and μ p C o x = 100 μ A / V 2 . Design the circuit to obtain I = 50 μ A and R o = 1 M Ω and to allow for the maximum possible voltage swing at the output terminal of the current source. Utilize | V o r | = 0.2 V . (a) Specify the required values of the dc bias voltages V G 1 and V G 2 . [ 5 points] (b) What is the maximum allowable voltage at the output? [5 points] (c) Specify the values of W / L and L for Q 1 and Q 2 . [10 points ]

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Cascode Stage. Design a Cascode amplifier shown in figure below to achieve a gain of 1600. Assume VDD = 1 V, Vth = 0.3 V, λn = 0.2 V−1, γ = 0, μnCox = 100 μA/V2, I1 = 1 mA, gmro ≫ 1. a) Find bias point (VGS−Vth of transistors) to achieve the target gain such that we achieve maximum swing at Vout. b) Find W/L for each transistor. c) Calculate optimal Vb and VIN DC bias to maximize output swing. What is this maximum/minimum voltage levels at the output? What is the maximum swing? d) Notice you must generate a specific Vb externally to maximize the swing. If a lazy designer decides to connect Vb to VDD instead, what would be the swing in this case? e) To realize the current source load, we will use a PMOS active load. For PMOS, use the same parameters with λp = 0.2 V−1, μpCox = 50 μA/V2. Assume the bias current will remain at 1mA, find the new gain value. What would be the W/L for PMOS if we want to have a VOD(VGS−Vth) of 0.1V for this device. f) Repeat part (e) for a PMOS load with 2L gate length. g) It seems like making the PMOS load very large (large W) is beneficial to reduce VOD and consequently improving the voltage swing. What do you think is the drawback?
Solution
0 0

The transistors have the following characteristics: nMOS: Vtn = 0.5 V, Kn′ = 400 μA/V2; pMOS: Vtp = −0.5 V, Kp′ = 100 μA/V2; Also assume the pMOSsQ3 and Q4 are identical and the nMOSsQ2 and Q5 are identical. VDD = 2.5 V and −VSS = −1 V. The required currents are ID = 100 μA and IREF = 50 μA. Also, the output voltage should be allowed to swing up to 2.3 V. (a) (i)Find the (W/L) ratio of all transistors and (ii) the resistor R. (25 points). (b) Show a clean and labeled small signal equivalent circuit with the values shown in the diagram. (10 points) (c) If all transistors have |λ| = 0.02 V−1, find the small signal gain vo/vin , Rin and Rout. . (10 points). (d) What is the minimum value of vO so that the transistor remains in saturation (5 points).
Solution
0 0

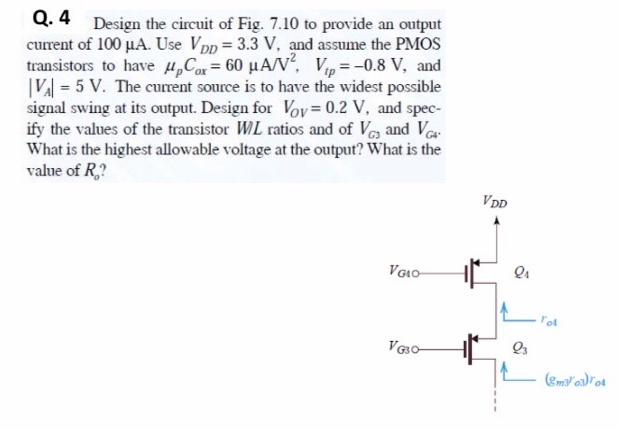

Design the circuit of Fig. 7.10 to provide an output current of 100 uA. Use VDD = 3.3 V, and assume the PMOS transistors to have upCox = 60 uA/V^2, Vtp = -0.8 V, and | VA| = 5 V. The current source is to have the widest possible signal swing at its output. Design for Vov = 0.2 V, and specify the values of the transistor W/L ratios and of VG3 and VG4. What is the highest allowable voltage at the output? What is the value of Ro?
