For a silicon nMOS capacitor with no fixed oxide charge or charge at the oxide-silicon interface, the substrate doping Na = 1017 cm−3 and an aluminum gate (ΦM = 4.1 V). Find the flatband voltage VFB.

For a silicon nMOS capacitor with no fixed oxide charge or charge at the oxide-silicon interface, the substrate doping Na = 1017 cm−3 and an aluminum gate (ΦM = 4.1 V). Find the flatband voltage VFB.

Image text

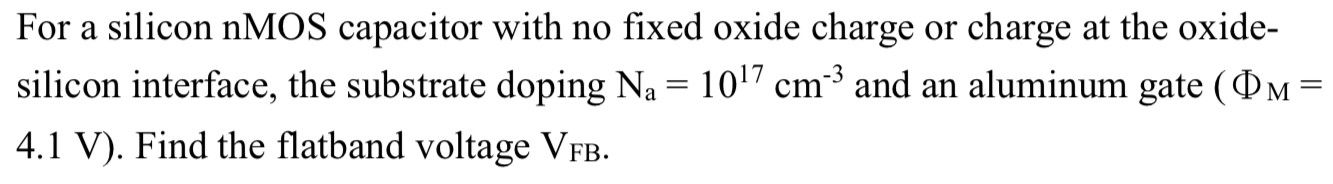

For a silicon nMOS capacitor with no fixed oxide charge or charge at the oxidesilicon interface, the substrate doping N a = 10 17 cm − 3 and an aluminum gate ( Φ M = 4.1 V). Find the flatband voltage V FB .

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Problem 2: MOS Areal Charge Density Consider an n+ poly-Si-gated MOS capacitor with oxide thickness x0 = 3 nm and p-type Si substrate doping NA = 1017 cm−3 maintained at T = 300 K. (Gate work function ΦM = 4.1 eV ) a) What is the flat-band voltage, VFB, of this capacitor? b) What is the threshold voltage, VT, of this capacitor? c) Write down formulae for the total areal charge density (in C/cm2 ) in the Si as a function of gate voltage, for each of the regions of operation (accumulation, depletion, and inversion). Plot the total areal charge density as a function of VG > VFB. d) Calculate the areal charge density in the Si for a gate voltage VG = VT + 1 V, and sketch the corresponding charge distribution within the MOS structure for this gate bias.

Solution
0 0

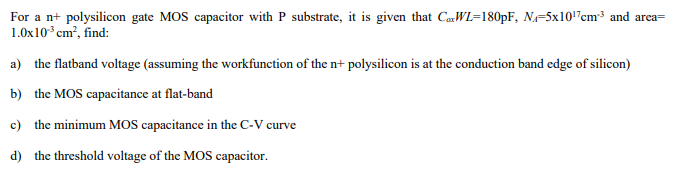

For a n+ polysilicon gate MOS capacitor with P substrate, it is given that CaxWL = 180 pF, NA = 5×1017 cm−3 and area = 1.0×10−3 cm2, find: a) the flatband voltage (assuming the workfunction of the n+ polysilicon is at the conduction band edge of silicon) b) the MOS capacitance at flat-band c) the minimum MOS capacitance in the C-V curve d) the threshold voltage of the MOS capacitor.
Solution
0 0

Assume there is a MOS capacitor. The metal used in the capacitor is TaN, the oxide material is SiO2, and the substrate is p-type Si. At 300 K, the doping concentration of the p-type substrate NA = 1.5×1017 cm−3. The fixed charge in the gate oxide QS is 1011 cm−2, the work function of TaN is 4.02 eV, and the electron affinity of Si and SiO2 are 4.01 eV and 9 eV, respectively. The MOS capacitor was measured by a semiconductor analyser. It was found the maximum capacitance is 5×10−8 F/cm2. Provided that, at 300 K, ni = 1.5×1010 cm−3, ε0/e = 5.52×105 F cm−1 C−1, please calculate: i. The gate oxide thickness tox and capacitance Cox. (10 pts) ii. The flatband voltage VFB. (5 pts) iii. The maximum depletion width Xd and the depletion charge density Qd. (20 pts) iv. The threshold voltage VT. (5 pts) v. If the gate metal TaN is replaced by a heavily n-type doped (n++)Si, what is the impact on the capacitance of the MOS device? Please discuss it qualitatively. (10 pts)
Solution
0 0
