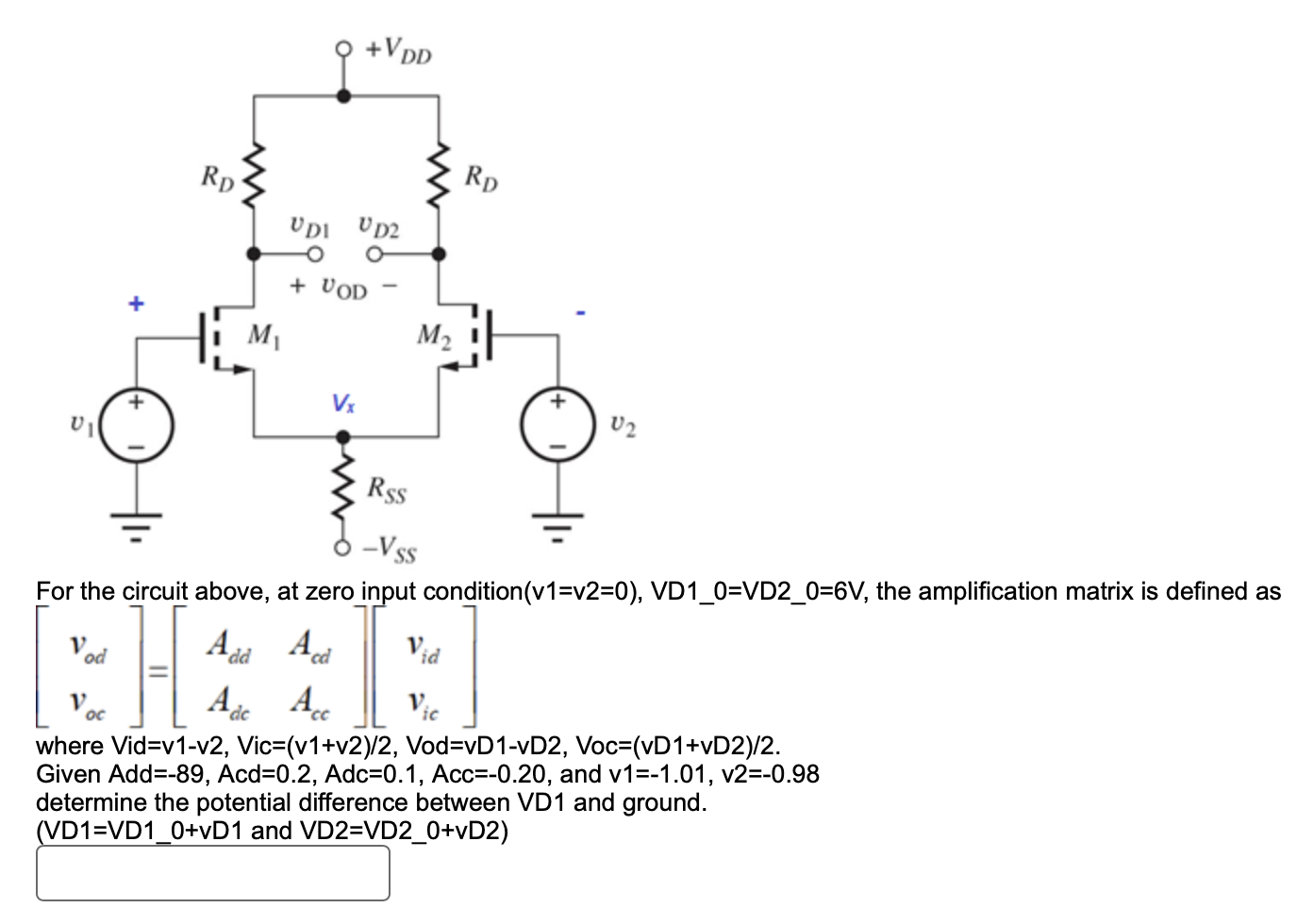

For the circuit above, at zero input condition( (v1 = v2 = 0), VD1_0 = VD2_0 = 6 V, the amplification matrix is defined as[vod voc] = [Add Acd Adc Acc][vid vic]where Vid = v1-v2, Vic = (v1+v2)/2, Vod = vD1-vD2, Voc = (vD1+vD2)/2. Given Add = -89, Acd = 0.2, Adc = 0.1, Acc = −0.20, and v1 = −1.01, v2 = −0.98 determine the potential difference between VD1 and ground. (VD1 = VD1_0+vD1 and VD2 = VD2_0+vD2)

For the circuit above, at zero input condition( (v1 = v2 = 0), VD1_0 = VD2_0 = 6 V, the amplification matrix is defined as[vod voc] = [Add Acd Adc Acc][vid vic]where Vid = v1-v2, Vic = (v1+v2)/2, Vod = vD1-vD2, Voc = (vD1+vD2)/2. Given Add = -89, Acd = 0.2, Adc = 0.1, Acc = −0.20, and v1 = −1.01, v2 = −0.98 determine the potential difference between VD1 and ground. (VD1 = VD1_0+vD1 and VD2 = VD2_0+vD2)

Image text

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution For Difficult Questions
  • Icon 7-Days Free Trial
Login Sign Up

Similar/Related Questions

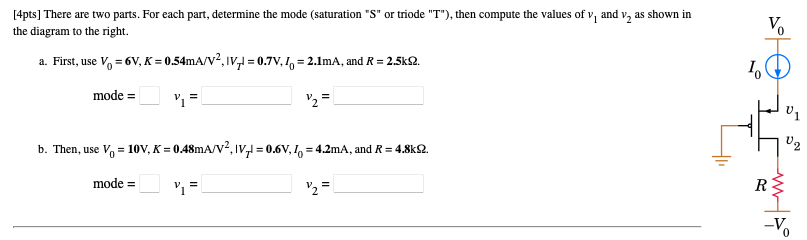

There are two parts. For each part, determine the mode (saturation “S” or triode “T”), then compute the values of v1 and v2 as shown in the diagram to the right. a. First, use V0 = 6V, K = 0.54mA/V2 , |VT| = 0.7V, I0 = 2.1mA, and R = 2.5kΩ. mode = v1 = v2 = b. Then, use V0 = 10V, K = 0.48mA/V2 , |VT| = 0.6V, I0 = 4.2mA, and R = 4.8kΩ. mode = v1 = v2 =
Solution
0 0

To improve the performance of the differential amplifier shown in Figure Q1, the biasing current source is replaced by a Widlar current source. The collector resistors are replaced by a current mirror formed by the matched bipolar transistors Qs and Q6, and the bipolar transistors Q1 and Q2 are replaced by the matched field-effect transistors M1 and M2. A single-sided output at the drain terminal of M2 is used. The transistor parameters for the bipolar transistors are: β = 100, VBE (on) = VEB(on) = 0.7 V, and VA = 100 V. The transistor parameters for M1 and M2 are: Kn = 0.15 mA/V2, VT N = 0.8 V, λ = 0.01 V-1 . The improved differential amplifier is shown in Figure Q2. (a) Determine the quiescent voltages and currents of M1 and M2 when v1 = v2 = 0. (4 marks) (b) Design the value of resistor RE such that IQ = 0.1 mA. (2 marks) (c) Determine the maximum and minimum common-mode voltages that can be applied to v1 and v2. (3 marks) (d) Determine the percentage change in IQ when the common-mode voltage applied to v1 and v2 changes from the maximum to the minimum value obtained in part (c). (5 marks) (c) Define vd = v1 - v2, determine the differential-mode voltage gain Ad of the improved differential amplifier.
Solution
0 0

Consider the dynamic amplifier shown below. Supply voltage is VDD = 1.8 V. MOSFETs S1, S2, and S3 are ideal analog switches. They are controlled by ϕ1, which changes from 0 V to VDD at t = 0. MOSFETs M1 and M2 are biased in the active (saturation) region. Their transconductances are gm1 = gm2 = 0.5 m℧. Define Vid = Vi1 - Vi2 Vic = Vi1 + Vi2/2 Vod = Vo1 - Vo2 Voc = Vo1 + Vo2/2 The amplifier is activated at t = 0. The amplification time Ta is the time for Voc falling from VDD to VDD - 0.6 V. a. [7pts] Find Ta. b. [8 pts] Find the differential voltage gain Adm = Vod/Vid at t = Ta.
Solution
0 0
