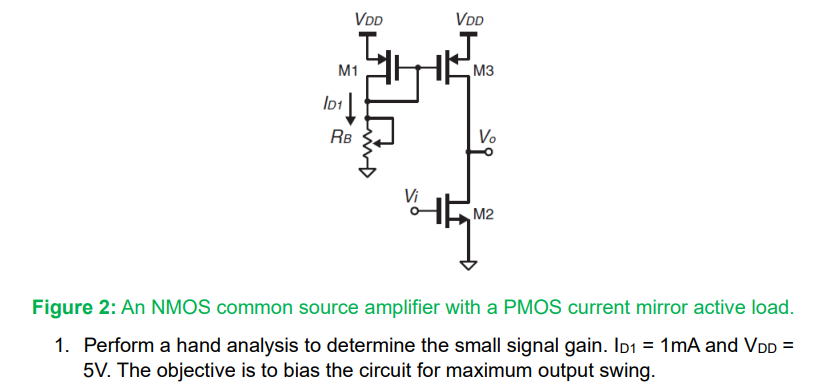

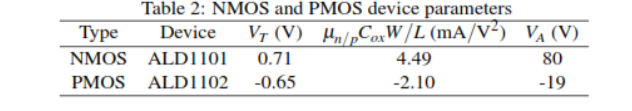

Perform a hand analysis to determine the small signal gain. ID1 = 1 mA and VDD = 5 V. The objective is to bias the circuit for maximum output swing. Figure 2: An NMOS common source amplifier with a PMOS current mirror active load.
