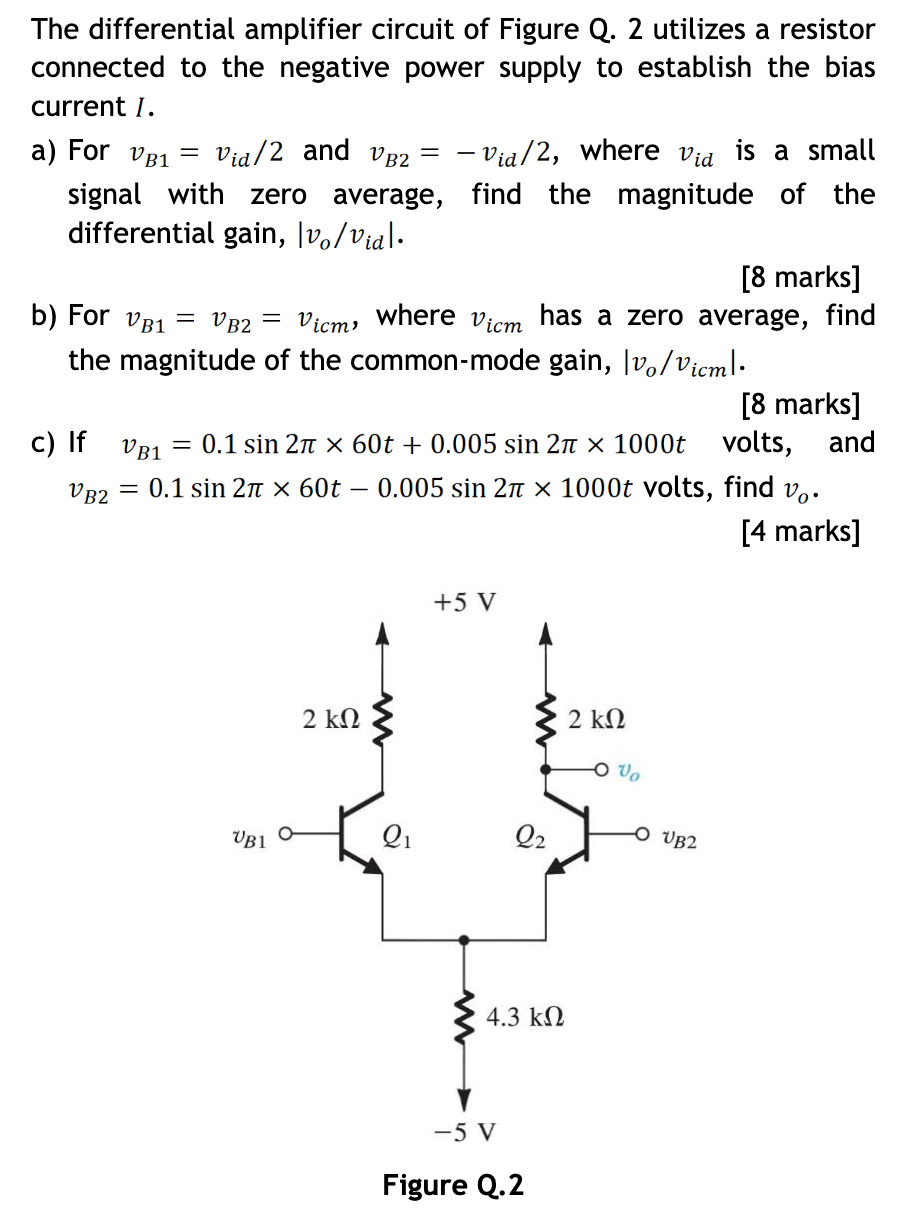

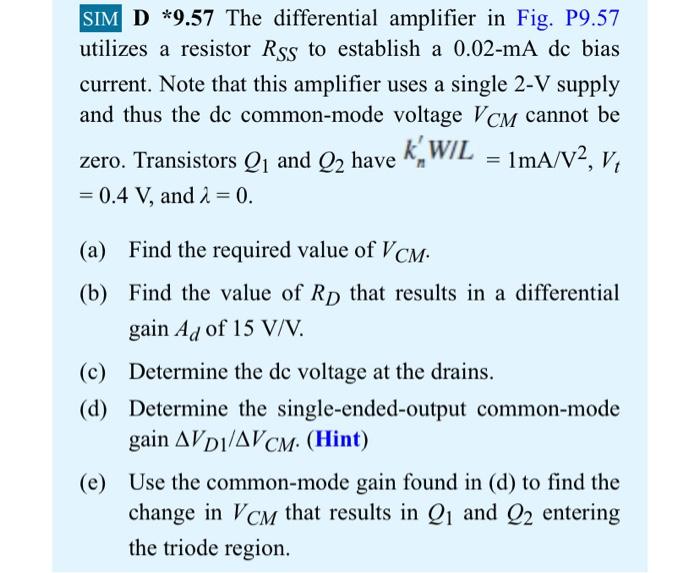

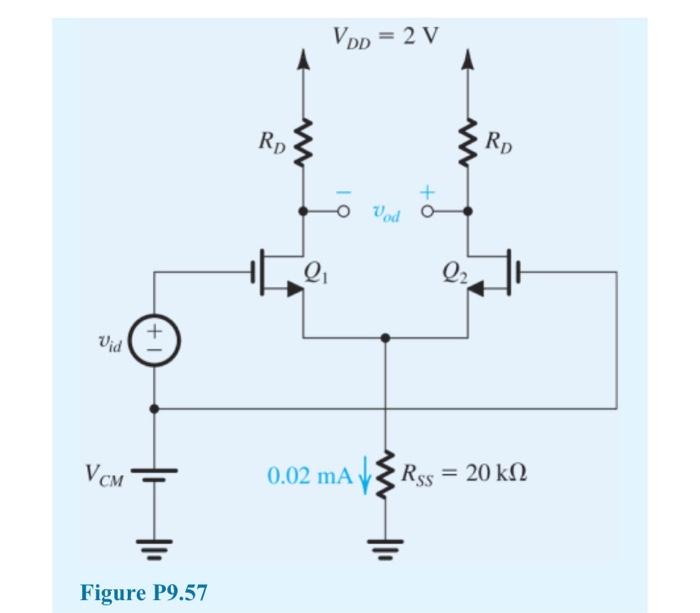

The differential amplifier circuit of Figure Q.2 utilizes a resistor connected to the negative power supply to establish the bias current I. a) For vB1 = vid/2 and vB2 = −vid/2, where vid is a small signal with zero average, find the magnitude of the differential gain, |vo/vid|. [8 marks] b) For vB1 = vB2 = vicm, where vicm has a zero average, find the magnitude of the common-mode gain, |vo/vicm|. [8 marks] c) If vB1 = 0.1 sin⁡2π×60t + 0.005 sin⁡2π×1000t volts, and vB2 = 0.1 sin⁡2π×60t − 0.005 sin⁡2π×1000t volts, find vo. [4 marks] Figure Q. 2
