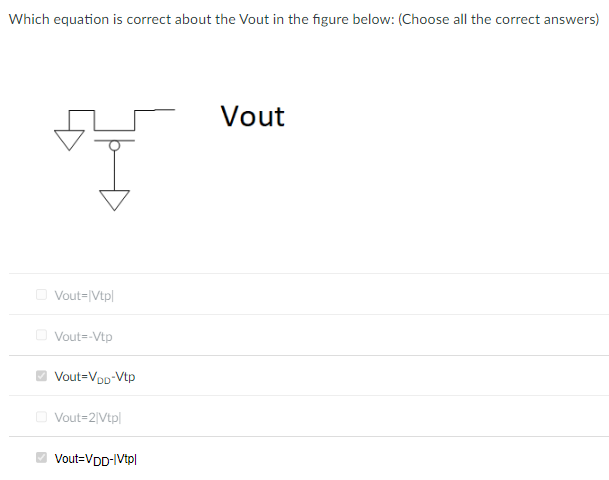

Which equation is correct about the Vout in the figure below: (Choose all the correct answers) Vout Vout = |Vtp| Vout = -Vtp Vout = VDD − Vtp Vout = 2|Vtp| Vout = VDD − |Vtp|

Which equation is correct about the Vout in the figure below: (Choose all the correct answers) Vout Vout = |Vtp| Vout = -Vtp Vout = VDD − Vtp Vout = 2|Vtp| Vout = VDD − |Vtp|

Image text
Which equation is correct about the Vout in the figure below: (Choose all the correct answers)
Vout Vout=|Vtp| Vout=-Vtp Vout = V D D − Vtp Vout=2|Vtp| Vout = V DD − | Vtp |

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Problem 3: (Short Circuit Power Consumption) For the circuit in Figure 2, assume that the input Vin is a periodic square wave signal (called "clock") of frequency 200 MHz, and has a rising transition time (from 0−100% of VDD ) of 0.2 ns and a falling transition time (from 100−0% of VDD ) of 0.2 ns. For the inverter in the figure, find the short circuit power consumption. Use the procedural hints listed below. Procedural Hints:Calculate the short circuit duration, tsc. Short circuit currents occur when both nMOS and pMOS transistors are simultaneously ON. Use the rise/fall times given. Calculate the peak short circuit currents. For simplicity assume that Ipeak_sc_LH and Ipeak_sc_HL are equal, and calculate the latter only. To calculate Ipeak_sc_HL, , assume that the short circuit current for the H-to-L transition peaks when Vin = VDD/2 and Vout = 9 VDD /10 (this is an arbitrary choice assumed for this problem alone). Now calculate the pMOS transistor current - this will be Ipeak_sc_HL. . Question: Does the nMOS current equal the pMOS current? If not, how do you account for InMOS−IpMO ? Using your results from (1) and (2), calculate the short circuit power dissipation. Note: Assume that VDD = 1.0 Volts, (W/L)p = 3.5 /0.1, and (W/L)n = 2 /0.1. Transistor properties are given by the 90 nm model parameters handout posted on the class web-site. For the current calculation, use the transistor parameters (not the equivalent resistance parameters) and ignore channel length modulation. Assume that there is an 89 fF load on Out.

Solution
0 0

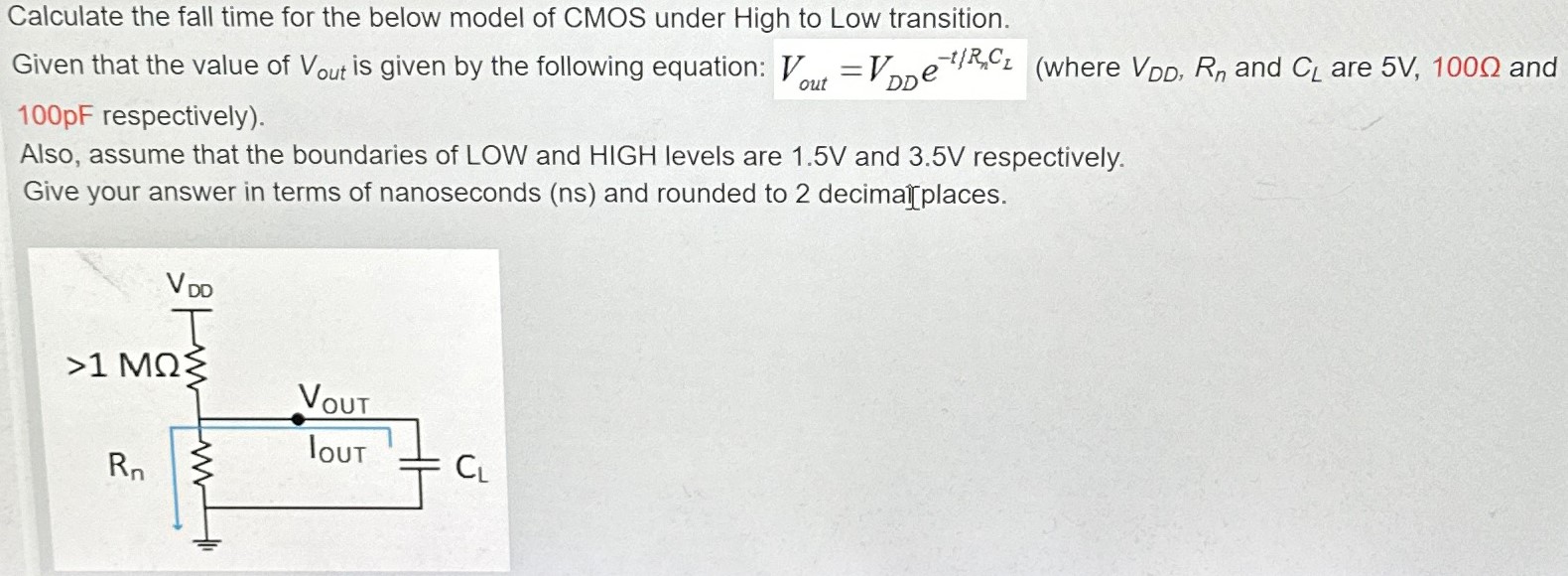

Calculate the fall time for the below model of CMOS under High to Low transition. Given that the value of Vout is given by the following equation: Vout = VDDe −t/RnCL (where VDD, Rn and CL are 5 V, 100 Ω and 100 pF respectively). Also, assume that the boundaries of LOW and HIGH levels are 1.5 V and 3.5 V respectively. Give your answer in terms of nanoseconds (ns) and rounded to 2 decimal places.

Solution
0 0

The following figure shows a pseudo-NMOS inverter gate, in which gate-grounded PMOS acts like resistive load. Assume VDD = 2.0V, unCox = 100 uA/V2, upCox = 50 uA/V2, VTHN = 0.4V, VTHP = -0.4V, lambda_n = 0, and lambda_p = 0. When (W/L)n =10 and Vin = VDD, Vout = 0.2V. Determine (W/L)p. Also assume that both NMOS and PMOS operate in linear region although PMOS actually operates in saturation region.
Solution
1 0
