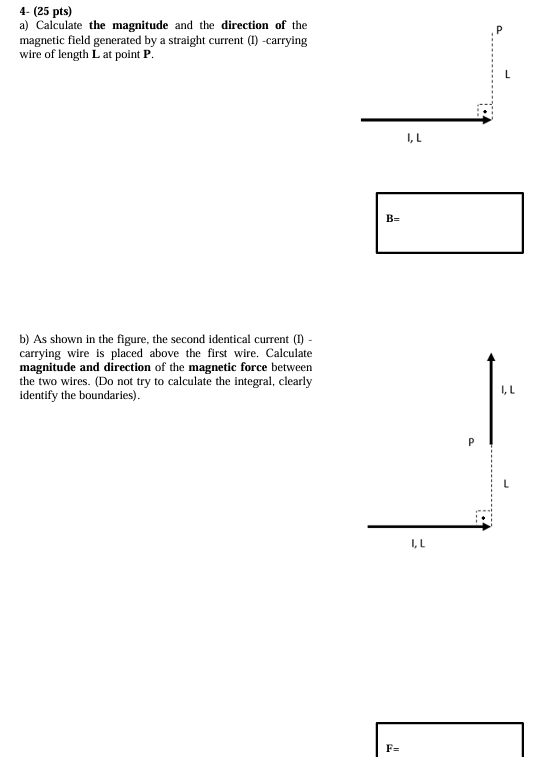

4- (25 pts) a) Calculate the magnitude and the direction of the magnetic field generated by a straight current (I) -carrying wire of length L at point P. b) As shown in the figure, the second identical current (I) carrying wire is placed above the first wire. Calculate magnitude and direction of the magnetic force between the two wires. (Do not try to calculate the integral, clearly identify the boundaries). F =

4- (25 pts) a) Calculate the magnitude and the direction of the magnetic field generated by a straight current (I) -carrying wire of length L at point P. b) As shown in the figure, the second identical current (I) carrying wire is placed above the first wire. Calculate magnitude and direction of the magnetic force between the two wires. (Do not try to calculate the integral, clearly identify the boundaries). F =

Image text
4- (25 pts) a) Calculate the magnitude and the direction of the magnetic field generated by a straight current (I) -carrying wire of length L at point P . b) As shown in the figure, the second identical current (I) carrying wire is placed above the first wire. Calculate magnitude and direction of the magnetic force between the two wires. (Do not try to calculate the integral, clearly identify the boundaries).
F =

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

3- (25 pts) As shown in the figure, a positively charged particle (q0, mass m0) is moving with a velocity V0 in the presence of both an electric field and a magnetic field. Electric field is generated by very large parallel plates. The potential difference between the two plates is 100 V. The particle is following a straight trajectory. Calculate the magnitude and the direction of the magnetic field between the plates. (Ignore gravitational interactions).
Solution
0 0

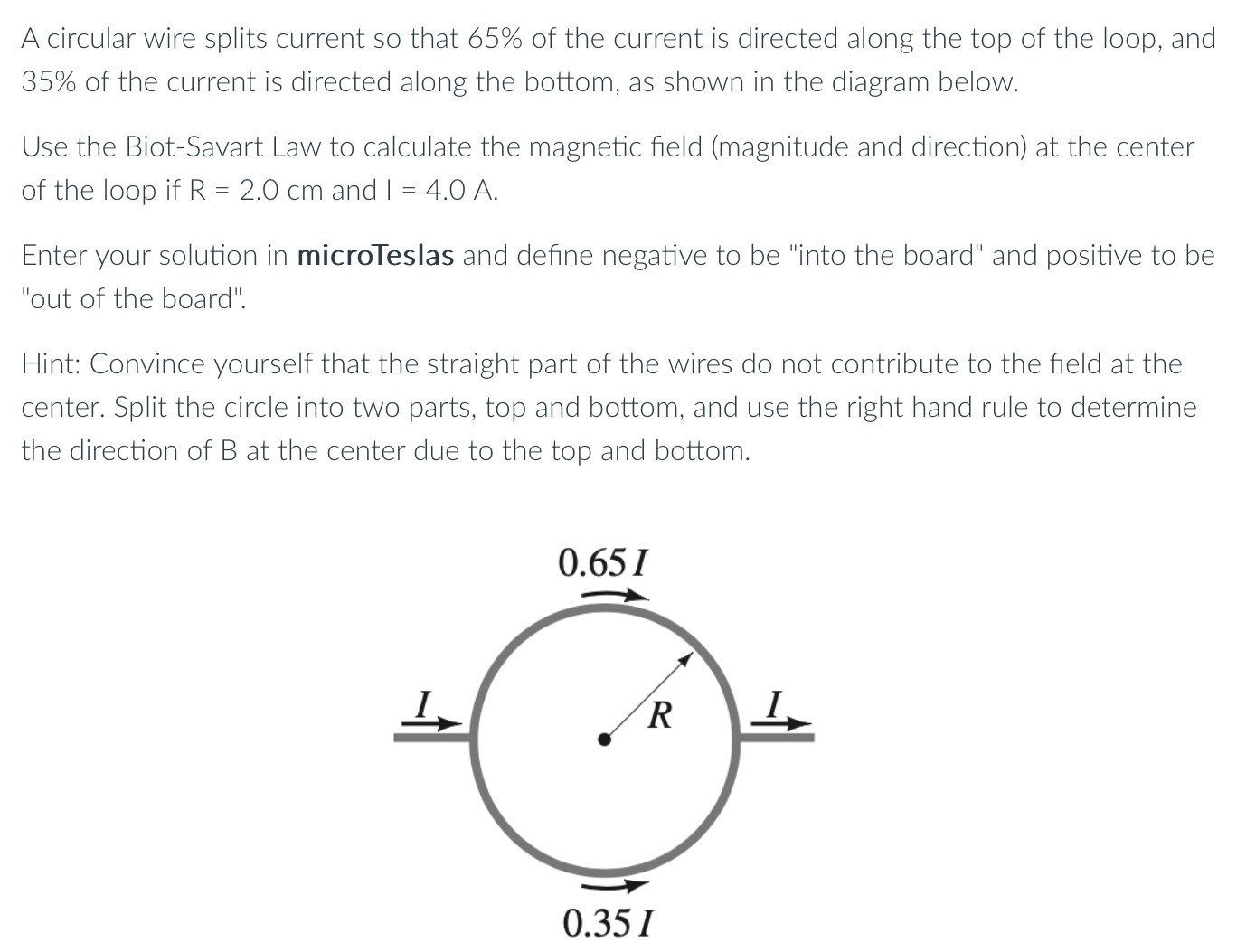

A circular wire splits current so that 65% of the current is directed along the top of the loop, and 35% of the current is directed along the bottom, as shown in the diagram below. Use the Biot-Savart Law to calculate the magnetic field (magnitude and direction) at the center of the loop if R = 2.0 cm and I = 4.0 A. Enter your solution in microTeslas and define negative to be "into the board" and positive to be "out of the board". Hint: Convince yourself that the straight part of the wires do not contribute to the field at the center. Split the circle into two parts, top and bottom, and use the right hand rule to determine the direction of B at the center due to the top and bottom.
