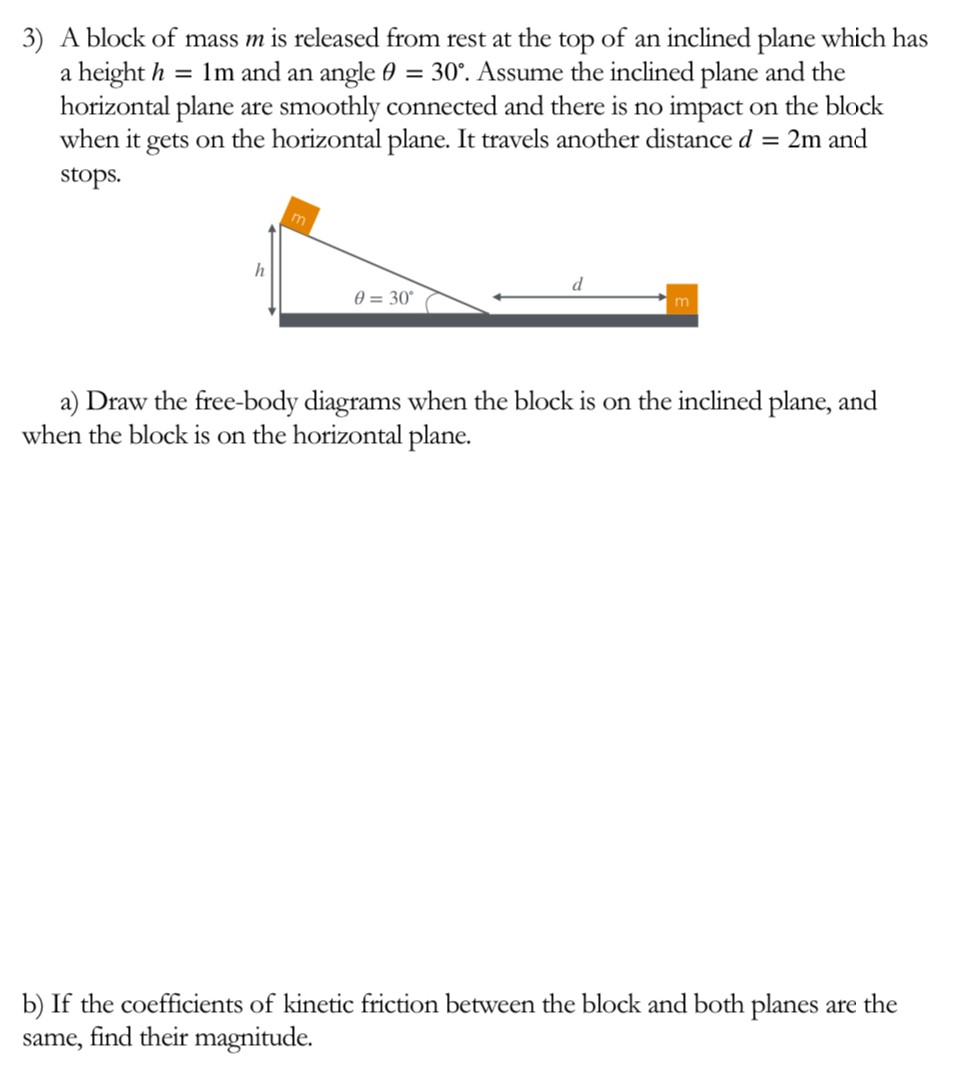

A block of mass m is released from rest at the top of an inclined plane which has a height h = 1 m and an angle θ = 30∘. Assume the inclined plane and the horizontal plane are smoothly connected and there is no impact on the block when it gets on the horizontal plane. It travels another distance d = 2 m and stops. a) Draw the free-body diagrams when the block is on the inclined plane, and when the block is on the horizontal plane. b) If the coefficients of kinetic friction between the block and both planes are the same, find their magnitude.

A block of mass m is released from rest at the top of an inclined plane which has a height h = 1 m and an angle θ = 30∘. Assume the inclined plane and the horizontal plane are smoothly connected and there is no impact on the block when it gets on the horizontal plane. It travels another distance d = 2 m and stops. a) Draw the free-body diagrams when the block is on the inclined plane, and when the block is on the horizontal plane. b) If the coefficients of kinetic friction between the block and both planes are the same, find their magnitude.

Image text
  1. A block of mass m is released from rest at the top of an inclined plane which has a height h = 1 m and an angle θ = 30 ∘ . Assume the inclined plane and the horizontal plane are smoothly connected and there is no impact on the block when it gets on the horizontal plane. It travels another distance d = 2 m and stops. a) Draw the free-body diagrams when the block is on the inclined plane, and when the block is on the horizontal plane. b) If the coefficients of kinetic friction between the block and both planes are the same, find their magnitude.
