The circuit below has the following values for its components: ΔV1 = 4 V, ΔV2 = 11 V, R1 = 12 Ω, and R2 = 10 Ω. What is the magnitude of the current through battery ΔV1? Report your answer in units of milliamperes. For example, if your calculations produce a value of 0.123 A, first transform your units as 123 mA, then enter your answer as 123.

The circuit below has the following values for its components: ΔV1 = 4 V, ΔV2 = 11 V, R1 = 12 Ω, and R2 = 10 Ω. What is the magnitude of the current through battery ΔV1? Report your answer in units of milliamperes. For example, if your calculations produce a value of 0.123 A, first transform your units as 123 mA, then enter your answer as 123.

Image text
The circuit below has the following values for its components: Δ V 1 = 4 V , Δ V 2 = 11 V , R 1 = 12 Ω , and R 2 = 10 Ω . What is the magnitude of the current through battery Δ V 1 ?
Report your answer in units of milliamperes. For example, if your calculations produce a value of 0.123 A , first transform your units as 123 mA , then enter your answer as 123.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

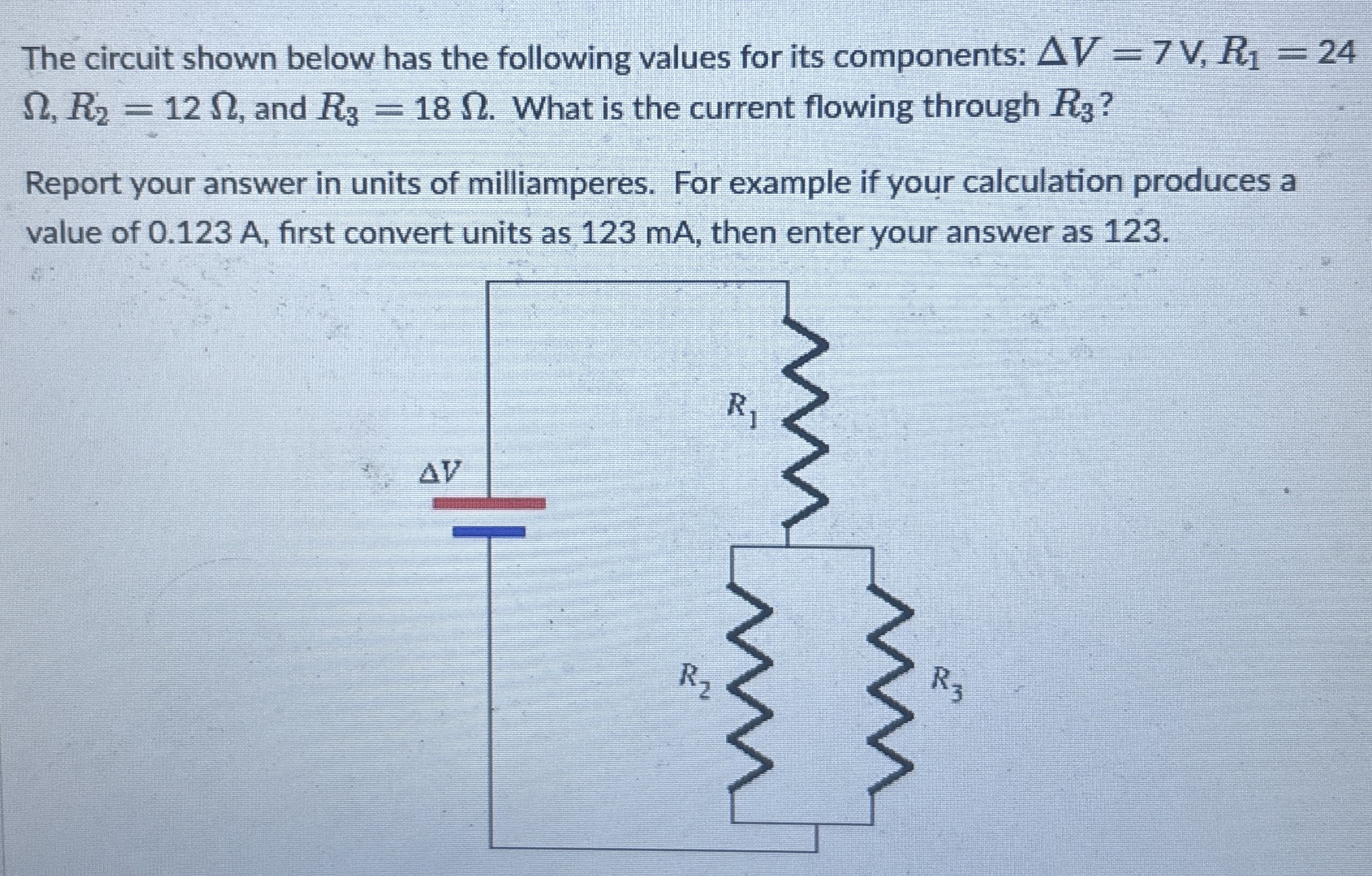

The circuit shown below has the following values for its components: ΔV = 7 V, R1 = 24 Ω, R2 = 12 Ω, and R3 = 18 Ω. What is the current flowing through R3? Report your answer in units of milliamperes. For example if your calculation produces a value of 0.123 A, first convert units as 123 mA, then enter your answer as 123.
Solution
0 0

Two parallel wires carry currents as shown in the figure below; current 1 is I1 = 3.1 A, current 2 is I2 = 4.6 A. The wires are separated by a distance Δx = 11.4 cm. Fin the magnitude of the total magnetic field at point P, which is a distance Δy = 3.7 cm above wire 2. Report your answer in units of microtesla, 10−6 T. For example, if your calculations produce a value of 1.23×10−5 T, first convert units to 12.3×10−6 T, then enter your answer as 12.3.
Solution
0 0

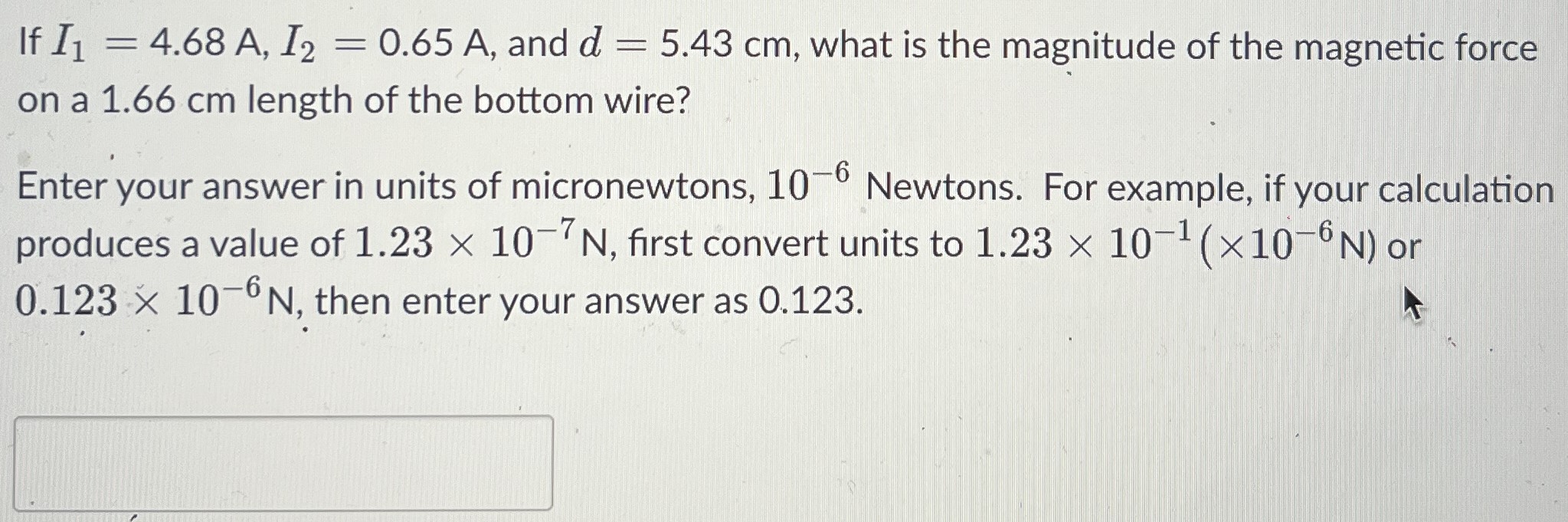

If I1 = 4.68 A, I2 = 0.65 A, and d = 5.43 cm, what is the magnitude of the magnetic force on a 1.66 cm length of the bottom wire? Enter your answer in units of micronewtons, 10−6 Newtons. For example, if your calculation produces a value of 1.23×10−7 N, first convert units to 1.23×10−1(×10−6 N) or 0.123×10−6 N, then enter your answer as 0.123.
